Overview
Overview

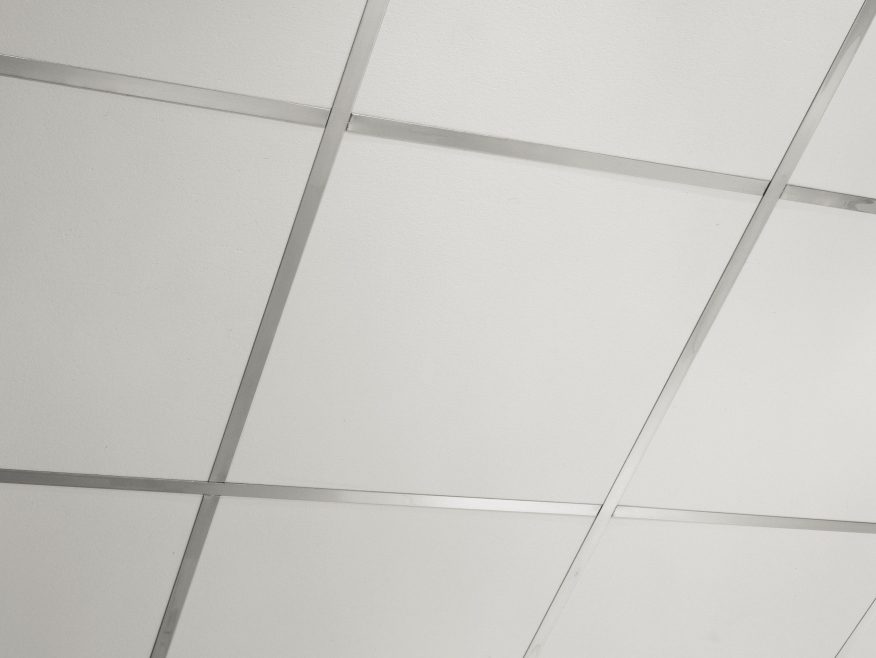

The most widely used acoustical suspension system available, this economical, simple and versatile system allows for maximum access. CGC Donn® Brand DX®/DXL™ 15/16" Acoustical Suspension System is rust resistant and offers appropriate load-carrying capacities for acoustical panels, light fixtures and air distribution elements. The system can be used in both general and fire-rated applications.
Main Features
The Donn® Brand DX®/DXL™ 15/16" Acoustical Suspension System is made with a galvanized steel body that inhibits rust. Twist resistant, offering a clean look without exposed steel edges, it is available in a variety of colors to coordinate with USG ceiling panels.- 15/16" exposed tee system. Components for use in general and fire-rated applications
- Maximum economy and design simplicity
- Compatible with Logix™ Integrated Ceiling Systems
- The Donn® Brand DXL™ system features more than 80 UL designs (up to three hours)
- Cross-tee override-ends resist twisting and give a professionally finished look
- Meets or exceeds all national code requirements, including seismic
- Proprietary Quick-Release™ cross tees
- Available with High Recycled Content (HRC)
Profile
Edge Compatibility
colors & finishes: White
Tees & Molding
Tees & Molding
What do I need to build this Suspension System?
- KEY:
- 1) Main Tee
- 2) Cross Tee
- 3) Wall Molding
Estimate Your Ceiling Materials
Quickly and easily calculate how many ceiling panels, molding and tees you'll need for your project!
Main Tees
- Firecode®
| Item Number | ASTM Class | Length | Height | Fire Class | Seismic IBC | Rated Load | |||
|---|---|---|---|---|---|---|---|---|---|
| 4' Hanger Spacing | 5' Hanger Spacing | 6' Hanger Spacing | |||||||
| DX/DXL26HRC | Heavy Duty | 12.00 foot | 1.64 inch | Class A | A-F | 16 lb./LF | 7.3 lb./LF | 4.9 lb./LF | |
Cross Tees
- Firecode®
| Item Number | Length | Height | Fire Class |
|---|---|---|---|
| DX/DXL216HRC | 2.00 foot | 1.00 inch | Firecode® |
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 1.4 MB |
Catalogs & Brochures
| System Catalog (English) | PDF 44.8 MB |
| Brochure (English) |
Design Files
| CAD and Revit Files (English) |
Installation & Technical Manuals
| Technical Guide (English) | PDF 282.0 KB |
| Installation Guide (English) |
SDS, Certifications & Reports
| VOC Emissions Certificate (English) | PDF 450.3 KB |
| SDS (English) | PDF 205.4 KB |
| Evaluation Reports (English) | PDF 1.6 MB |
Warranties
| Warranties (English) | PDF 146.0 KB |
Sustainability
| VOC Emissions Certificate (English) | PDF 450.3 KB |
