Overview
Overview

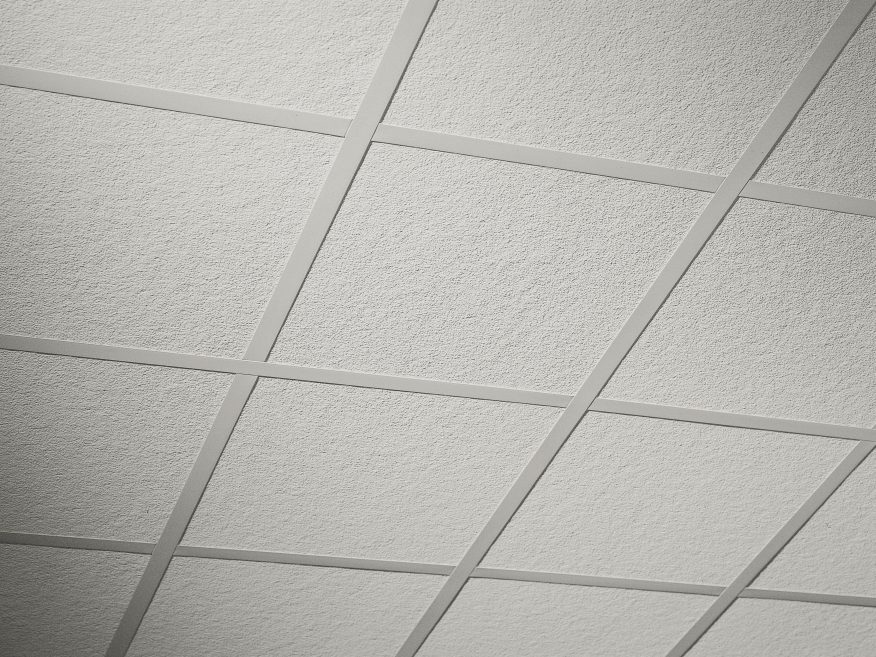

A perfect design alternative for high bay areas and large panel modules. CGC Donn® Brand DXW™ 1-1/2" Acoustical Suspension System is an exposed grid system that features a bold 1-1/2" face for ceilings requiring clear, strong modular definition. It’s hot-dipped, galvanized steel body inhibits rust.
Main Features
With all the design and installation advantages of the DX® system, The Donn® Brand DXW™ 1-1/2" Acoustical Suspension System, featuring a bold 1-1/2" face, adds an aesthetic alternative for larger scale installations and high ceilings. It provides the load carrying capacity needed for acoustical panels, light fixtures, and HVAC components.- 1-1/2" exposed grid system
- Design alternative for high-bay areas and large panel modules
- Cross-tee override-ends resist twisting and ensure a finished look
- Meets or exceeds all national code requirements, including seismic
- Design flexibility helps meet life safety codes
- Proprietary Quick-Release™ cross tees.
- ICC-ES evaluated approach to seismic design installations (ICC-ESR-1222)
- Available with High Recycled Content (HRC)
- Custom color available
- Easily create slip joints
Profile
Edge Compatibility
colors & finishes: Flat Black 205
Tees & Molding
Tees & Molding
What do I need to build this Suspension System?
- KEY:
- 1) Main Tee
- 2) Cross Tee
- 3) Wall Molding
Estimate Your Ceiling Materials
Quickly and easily calculate how many ceiling panels, molding and tees you'll need for your project!
Main Tees
- Firecode®
| Item Number | ASTM Class | Length | Height | Fire Class | Seismic IBC | Rated Load | |||
|---|---|---|---|---|---|---|---|---|---|
| 4' Hanger Spacing | 5' Hanger Spacing | 6' Hanger Spacing | |||||||
| DXW26 | Intermediate Duty | 12.00 foot | 1.50 inch | Class A | A-F | 16 lb./LF | 7.3 lb./LF | 4.9 lb./LF | |
Cross Tees
- Firecode®
| Item Number | Length | Height | Fire Class |
|---|---|---|---|
| DXW424 | 4.00 foot | 1.50 inch | Class A |
| DXW224 | 2.00 foot | 1.50 inch | Class A |
Installation
Installation Guide PDF 822.1 KB
Documents & Files
Data Sheets & Specifications
| Data/Submittal Sheet (English) | PDF 927.4 KB |
Catalogs & Brochures
| System Catalog (English) | PDF 44.8 MB |
| Brochure (English) |
Installation & Technical Manuals
| Technical Guide (English) | PDF 282.0 KB |
| Installation Guide (English) | PDF 822.1 KB |
SDS, Certifications & Reports
| VOC Emissions Certificate (English) | PDF 450.3 KB |
| SDS (English) | PDF 205.4 KB |
| Evaluation Reports (English) | PDF 1.6 MB |
Warranties
| Warranties (English) | PDF 146.0 KB |
Sustainability
| VOC Emissions Certificate (English) | PDF 450.3 KB |
