item: 141147

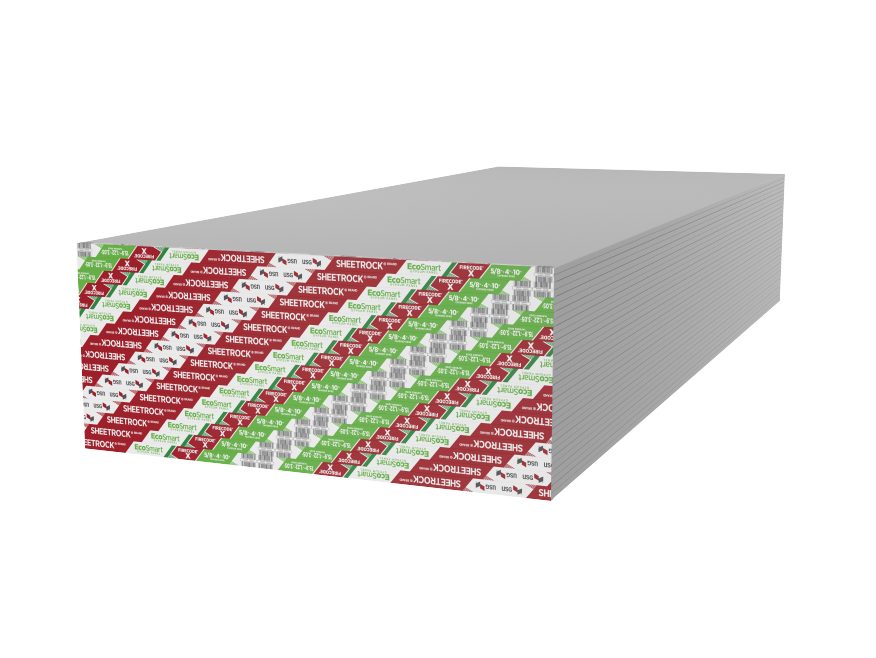

Sheetrock® Brand EcoSmart Panels Firecode® X
overview
overview
The first lightweight and sustainable Type X gypsum panels available. USG Sheetrock® Brand EcoSmart Panels Firecode® X represent a revolution in wallboard manufacturing, significantly reducing the need for natural resources and impact on the environment. These 5/8 in. lightweight Type X gypsum panels have been formulated to achieve all of the strength and performance characteristics as standard 5/8 in. USG Sheetrock® Brand Firecode® X Panels at a significantly lower environmental impact and reduced weight. Listed in the most widely specified UL fire-rated wall, column, and floor- and roof-ceiling designs, USG Sheetrock® Brand EcoSmart Panels Firecode® X can be used in any UL design in which UltraLight Innovation Type X (ULIX™) panels are listed.
main_features
- Sustainable and ultralightweight 5/8 in. (15.9 mm) enhanced proprietary Type X panels for interior wall and ceiling applications
- Meet Architecture 2030 Challenge for Products
— Up to 21% less global warming potential (GWP)*
— Up to 22% less weight reduces transportation fuel energy by up to 20% - Living Building Challenge™ Red List Free
- Contain 100% USDA certified biobased content
- Up to 94.6% recycled content (regionally available)
- Achieved GREENGUARD Gold Certification and qualifies as a low VOC emitting material (meets CA 01350)
- USGBC® LEED® v4—may assist in achieving additional credits
- Underwriters Laboratories Inc. (UL) Classification as to fire resistance, surface burning characteristics and noncombustibility
- Comply with ASTM C1396, Standard Specification for Gypsum Board, for 5/8 in. (15.9 mm) and Type X gypsum wallboard
- Offer comparable sound, strength and sag resistance to standard 5/8 in. (15.9 mm) Type X
- Listed by UL in the most widely specified wall, column, floor- and roof-ceiling assemblies and horizontal membranes (refer to published designs for complete details)
specifications
submittal-sheet
PDF 430.5 KB
performance
- anti-mold-mildew-resistance no
-
fireResistance
- fireRating Enhanced Proprietary Type X
- astmType ASTM C1396
- ultypedesignations ULIX
sustainability
- greenGuard yes
physical-data
- thickness-with-units 5/8
- edgeProfile Tapered Edge
- panel-size 54 in. x 8-16 ft.
installation
installation_guide PDF 7.4 MB
Documents & Files
Data Sheets & Specifications
| data-submittal-sheets (english) | PDF 430.5 KB |
| architectural-specs (english) | DOCX 76.1 KB |
white_papers
| white-paper (english) | PDF 729.3 KB |
| sell-sheets (english) |
Catalogs & Brochures
| system-catalog (english) | PDF 14.2 MB |
| brochure (english) | PDF 3.9 MB |
project-profile
| project-profile (english) | PDF 2.0 MB |
design_files
| cad_revit_files (english) |
inst_tech_manuals
| selector-guide (english) | PDF 10.6 MB |
| installation-guide (english) | PDF 7.4 MB |
sds_certs_reports
| sds-msds (english) | PDF 97.0 KB |
| sds-msds (spanish) | PDF 87.9 KB |
sustainability
| optimization-credit (english) | PDF 506.5 KB |
| health-product-declaration (english) | PDF 110.9 KB |
| environmental-product-declaration (english) | |
| declare-label (english) | PDF 178.8 KB |
