CGC Halcyon™ Healthcare Acoustical Panels
key_docs_design_files
explore_sizes_and_options
Fineline
Shadowline
Square EdgeStandard Colors
overview
overview
nrc
0.95 label-nrc
cacMin
20 label-cacMin
lightReflectance
label-lightReflectance 0.90
averageRecycledContent
40 label-averageRecycledContent
main_features

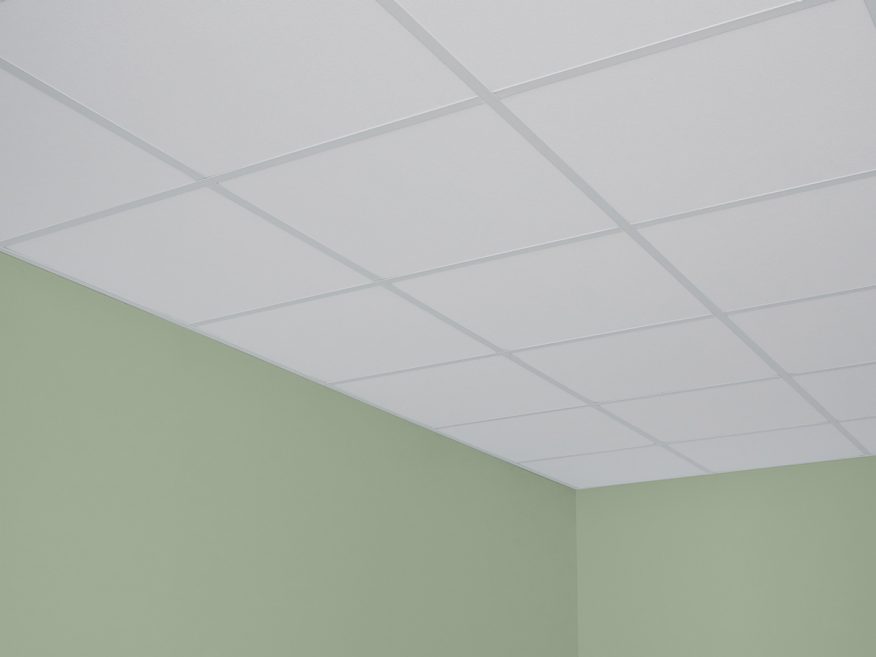

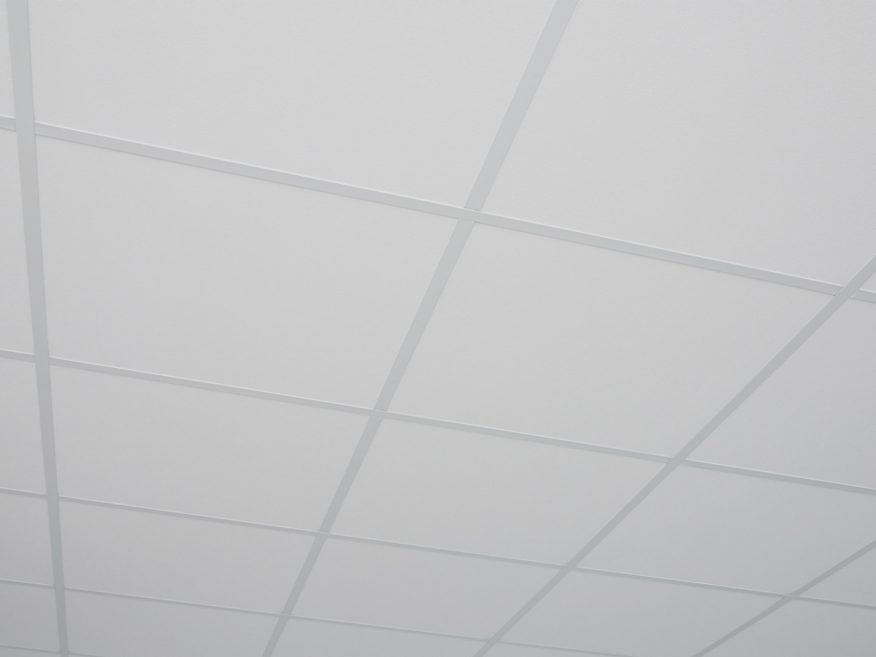

Halcyon™ Healthcare ceiling panels are ideal for spaces that require superior noise absorption thanks to their high-NRC rating (.95 or 1.00), which allows for increased room-to-room speech privacy and greater sound control in open-plan areas. Aesthetically, these panels visually coordinate with Mars™ Healthcare. And their non-directional, monolithic appearance reduces installation time and waste.- High light-reflective finish (LR–.88)
- Washable and scrubbable finish
- Impact and scratch resistant
- Exceeds FGI guidelines for healthcare applications
- Meets USDA/FSIS guidelines for use in food-processing areas
- Achieve FDA standards for being smooth, durable and easily cleanable — all of which can enhance the indoor environmental quality of your healthcare spaces
- ClimaPlus™ 30-year lifetime system warranty against visible sag, mold and mildew
applications
- Administrative Offices
- Classrooms
- Convention and Meeting Rooms
- Department Stores and Boutiques
- Executive Areas, Conference Areas and Board Rooms
- Galleries and Exhibit Spaces
- Guest Rooms and Suites
- Lobbies and Reception Areas
- Mall Interior Spaces
- Media Centers, Music Rooms and Libraries
- Nurseries and Birthing Rooms
- Patient Rooms
specifications
performance
- sound-absorption-nrc 0.95
- sound-attenuation-cac 20
- lightReflectance 0.90
- anti-mold-mildew-resistance yes
-
fireResistance
- fireRating Class A
-
ASTM E1264
- astm-e1264-class Type XII - Glass fiber base with membrane-faced overlay, Pattern E; Pattern G, Form 2
-
ASTM E84
- astmFlameSpread 25 or less
- astmSmokeDeveloped 50 or less
- fireRating Class A
sustainability
- averageRecycledContent 40%
physical-data
- thickness-with-units 1
- color White
- edgeProfile Square Edge
- panel-size 2 ft. x 2 ft.
warranty
-
warranty
USG Ceilings Commercial Application Warranty (English) - SC2102PDF 146 KB
Documents & Files
Data Sheets & Specifications
| data-submittal-sheets (english) | |
| architectural-specs (english) | DOCX 110.6 KB |
Catalogs & Brochures
| system-catalog (english) | PDF 44.8 MB |
design_files
| cad_revit_files (english) |
inst_tech_manuals
| tech-guides (english) |
| installation-guide (english) |
sds_certs_reports
| sds-msds (english) | PDF 95.5 KB |
| sds-msds (french) | PDF 142.9 KB |
warranties
| warranties (english) | PDF 146.0 KB |
sustainability
| environmental-product-declaration (english) |
